T1650E-CS Top plate stretch pallet wrapper

Name: T1650ECS Top plate stretch pallet wrapper
Brand: china coal
Price: 1 USD

Place of Origin : China

Brand Name : china coal

Certification : MA, ISO9001, CE

Price : CONSULTATIVE

Packaging Details : STANDARD PACKING

Delivery Time : 7 days

Payment Terms : TT/LC/Western Union

Supply Ability : 5000/month

MOQ : 1 set

Contact Now

Machine Introduction:

Fit pneumatic top plate based on T1650E. This machine is designed for tall unstable loads, top plate provides a press to the top of unstable goods and ensure it safety packing.

Technical Data :

Max load size(mm)	1200 (L)×1200(W) ×2400(H)
Pneumatic top plate stroke	1000mm (max)
Turntable diameter	1650mm
Turntable Height	78 mm
Turntable weight capacity	2000kg
Turntable speed	3-12rpm
Top pressure	20 kg
Pneumatic system	0.6Mpa
Electrics	220V 50HZ 1Phase
Power	1.2kw
Machine dimensions (mm)	2745(L)×1650(W)×2895(H)
Packing efficiency	20-40 loads/hour base on load

Product Tags:

stretch pallet wrapper

pallet wrapper

pallet stretch wrapper

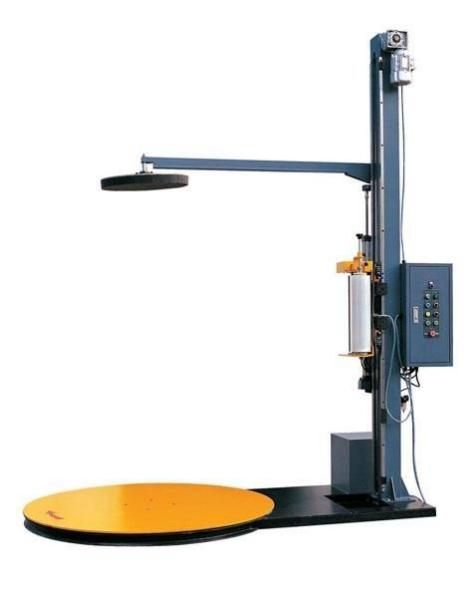

T1650E-CS Top plate stretch pallet wrapper Images
